infdb-import ¶

The infdb-import service facilitates the ingestion of external data into the infDB platform. It automates the process of importing various open data formats, ensuring that new datasets are properly structured and integrated into the core database for immediate use.

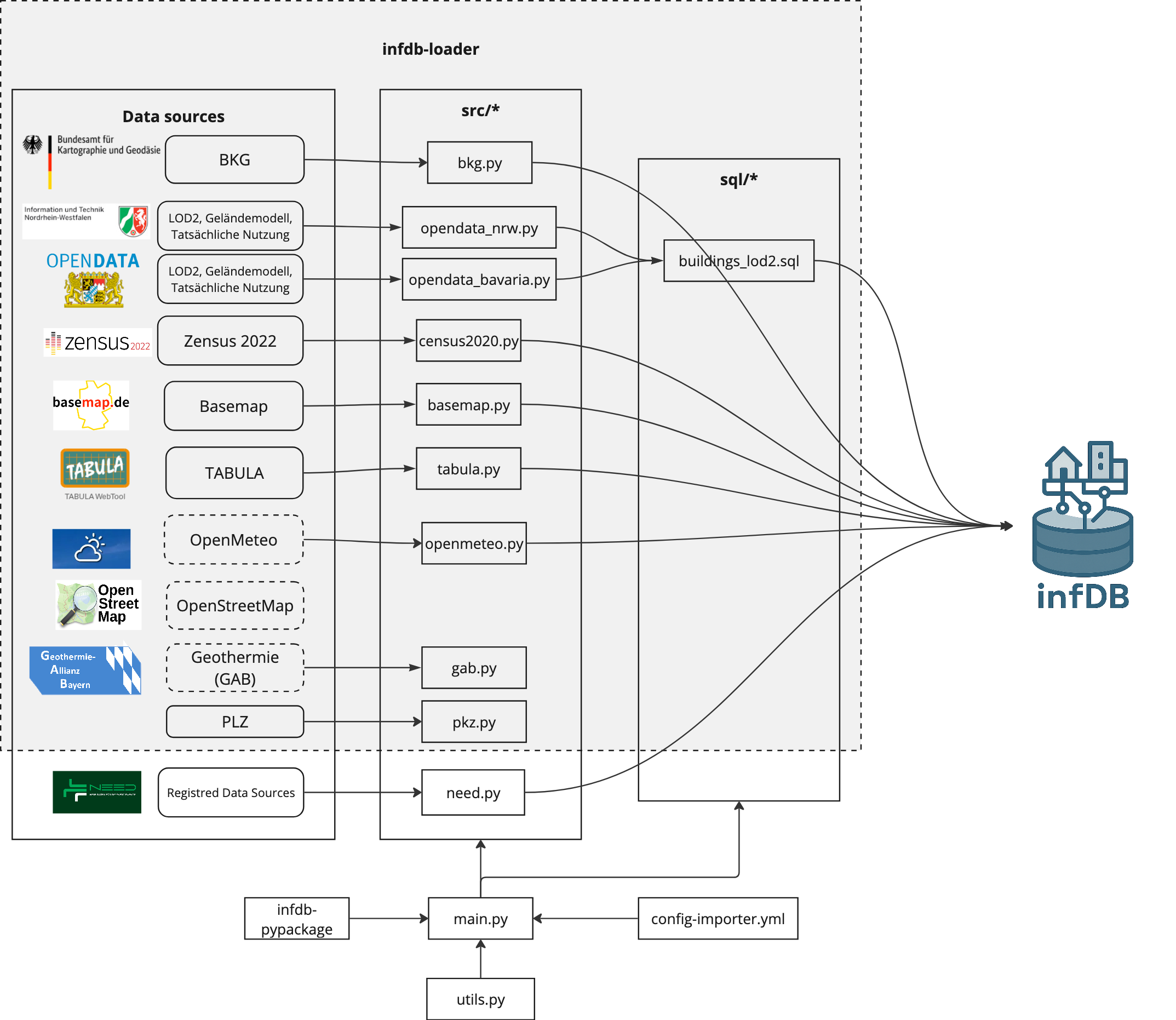

Architecture¶

The specialized microservice interacts directly with the infDB database. It leverages containerization to ensure consistent deployment and operation across different environments. The service can be configured to connect to various data sources, retrieve datasets, and transform them into the required format for storage in the database.

Supported Data Formats and Sources¶

The infdb-import supports a wide range of data formats and sources, including but not limited to:

CSV files
GeoJSON
Shapefiles
APIs from open data portals
Remote databases

Configuration¶

The configuration of the infdb-import service is controlled via environment variables:

.env

# ==============================================================================
# SERVICE ACTIVATION
# ==============================================================================
# Select profiles to activate
COMPOSE_PROFILES=...,opendata,...  # (1)

# ==============================================================================
# DATA IMPORTER AND LOADER (infdb-import)
# ==============================================================================
# Profile: opendata
# Path to the yaml configuration file for the infdb-import "configs/config-infdb-import.yml"

Activate service: The opendata profile must be included in the list to activate the infdb-import service.

YAML Configuration¶

The imported opendata sources are configured in a YAML file (default: configs/config-infdb-import.yml). This file controls which datasets are downloaded and processed.

Available data sources include (for North Rhine-Westphalia and Bavaria):

Building data (LOD2)
Statistical data (Zensus 2022, 2011)
Building topology (TABULA)
Weather and time series data (Openmeteo)
Administrative areas (BKG)
Postcodes (OpenStreetMap)

Example configuration structure:

configs/config-infdb-import.yml

infdb-import:
    name: "project_name"
    scope:
        - "09162000"  # Municipality Key (AGS)
    config-infdb: "config-infdb.yml"

    # Database Connection (uses defaults if None)
    hosts:
        postgres:
            user: None
            password: None
            db: None
            host: None
            exposed_port: None
            epsg: None

    sources:
        zensus_2022:
            status: active
            save_local: not-active
            datasets:
                - name: Bevoelkerungszahl
                  status: active
                  table_name: bevoelkerungszahl
                  year: 2022
                  url: https://www.destatis.de/static/DE/zensus/gitterdaten/Zensus2022_Bevoelkerungszahl.zip

Data Storage¶

The downloaded and processed raw data files are stored in a dedicated volume within the Docker environment (infdb-import-data). This ensures persistence between runs while allowing easy removal without enhanced privileges.

Developer Guide: Registering New Data Sources¶

Prepare Development Environment¶

Open infdb-import as a folder in your IDE.
Ensure no infdb-import container is running (stop/remove if necessary).
Open the folder in a VS Code Dev Container.

In main.py, comment out the following lines to speed up development cycles (schema dropping and unnecessary sources):

# Drop schema "opendata" for clean development runs
# with infdb.connect() as db:
#       db.execute_query("DROP SCHEMA IF EXISTS opendata CASCADE;")

Comment out specific data loading processes in main.py that you don't need for your current task.

Registration Process¶

Create Script: Create a new script in src/ (e.g., src/mydata.py).
Implement Load Function: Implement a load(infdb: InfDB) function.
Import: In main.py, import your script:
```
from src import mydata
```

Add Process: Add a new process to the processes list in main.py:

processes.append(mp.Process(target=mydata.load, args=(infdb,), name="mydata"))

Configure: Add configuration parameters to configs/config-infdb-import.yml.
